Integrated automation and dispatching of engineering systems

Video surveillance systems (CCTV)

Get consultation

A closed-circuit television system (CCTV) or video surveillance system in modern world is a part of complex facility security system.

Main task of the closed-circuit television system system is to provide visual control of adjacent territory and internal premises by the facility security service, as well as registration and recording of events on a video surveillance server located locally at the facility or remotely, for example, on a cloud service.

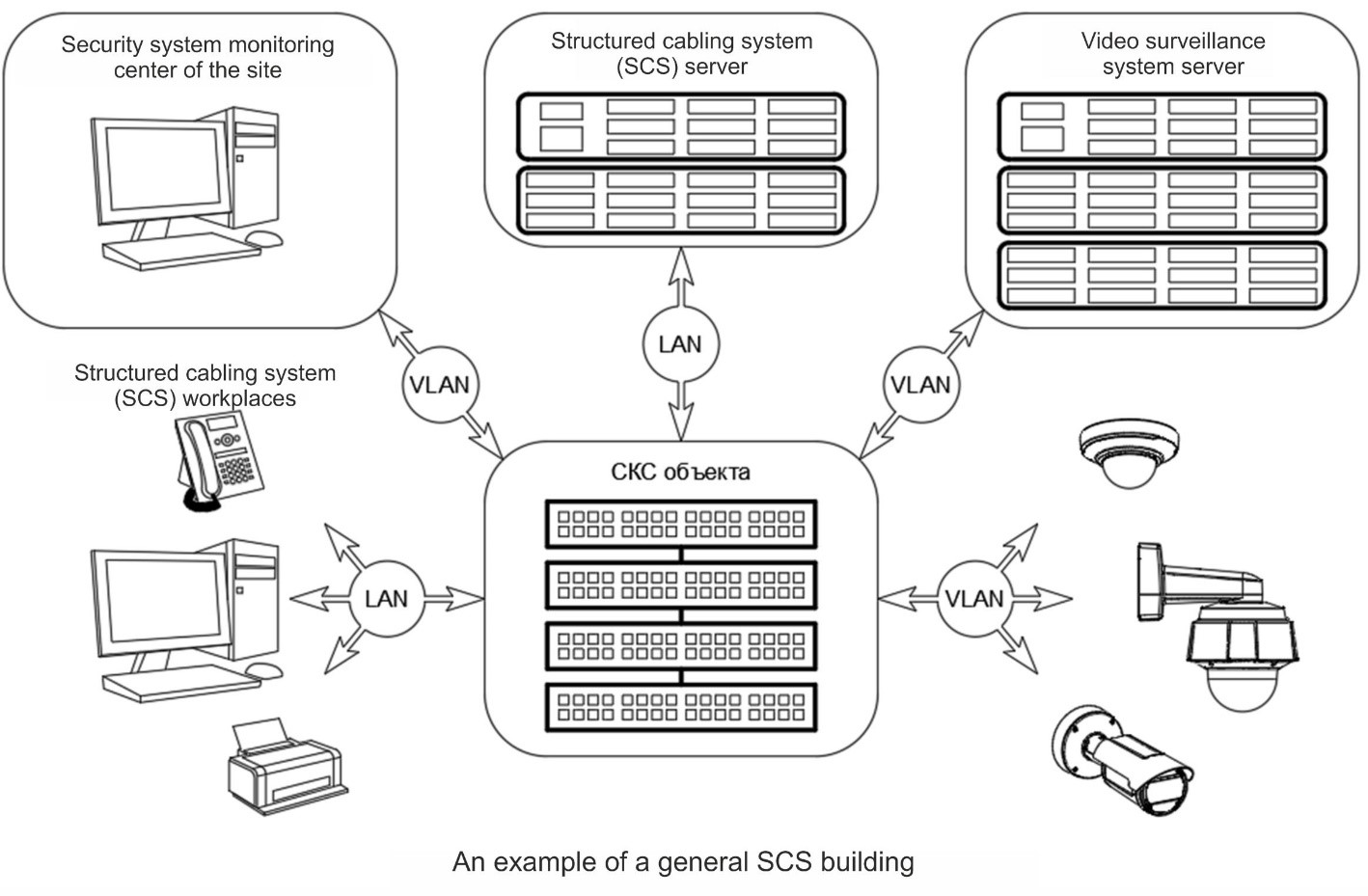

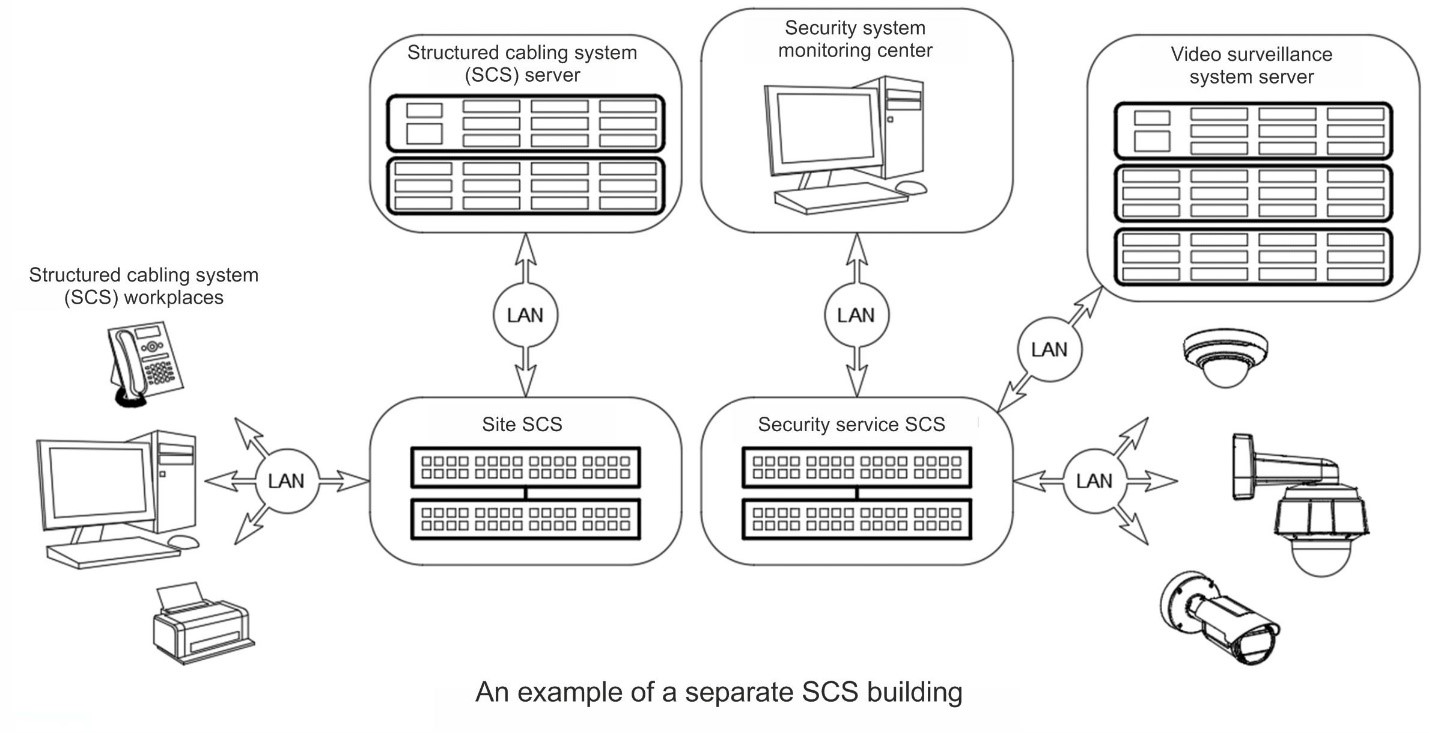

At present, an IP video surveillance system is most widely spread constructed on the basis of the structured cabling system of the facility. The system may be based on a separate structured cabling security system with a differentiation of access to active equipment of the network and on a virtual segment (VLAN) of a general structured cabling system of the facility.


A number of factors influence topology. Specialists of ST Solution will examine the facility and will help to build an optimal topology of the video surveillance system.

In the modern world due to a large choice and accessibility of network video cameras no one is surprised that they are everywhere, but with increasing the number of IP cameras at the facility a load on the security service personnel is increased. The more video cameras are installed at the facility, the higher volume of information is reprocessed and stored. In this case video analytics and neural networks become useful. Data from video cameras may be reprocessed on a separate video analytics server, well as on board of the video camera itself, for example, on Axis cameras.

Modern video analytics system may define faces, the color of clothes of the visitors, presence of a mask, type of transportation, leaved objects in the area of detection, duration of standing in the area of control, removing (idle walking) along and crossing of the protected perimeter, fumigation and ignition, tail-gating with one pass of the access control system and many other things. All this facilities video data analysis by the security service personnel got from network cameras, increases the efficiency of reaction to troubling events, reduces operational costs.

Thanks to video analytics, lately video surveillance system has expanded beyond security systems and is actively used in retail marketing. With the help of video cameras and retail analytics means it became possible to calculate the number of visitors, determine their age and gender, queue at the cashier desks, build heat maps for zoning of goods etc.

ST Solution company in close partnership with such companies, as Axis, Huawei, Dahua, LTV, Hikvision, DSSL, IDIS, ITV, Milestone will select video supervision equipment and analytics means for your facility, will mount and adjust the turnkey system.

Also the company has vast experience in audit and updating of current video surveillance systems. Our specialists will implement full examination of the facility, will make a proposal regarding video surveillance updating, will select the equipment according to the Customer requirements, will develop a project, will mount and adjust the operating system.

ST Solution specialists have experience in design, mounting and delivery of video surveillance equipment in the following industries:

  • industrial facilities

  • office buildings

  • trade and recreation centers

  • data processing centers

  • car dealerships
  • greenhouse complexes

  • residential buildings

  • culture facilities



Our solutionsMore projects

Jaguar-Land Rover Car Dealership
Object area:40 000 m2
Grain terminal with a cargo turnover of 2.5 million tons per year in the port of Novorossiysk
Location:South
Magnit shopping and administrative complexes in the cities of Ulyanovsk, Yaroslavl, Elista, Voskresensk, Kineshma, Shuya, Aleksin
Location:Northwest
Object area:15 000 м2
Сar dealership center BMW-Volkswagen
Location:Centre
Object area:41 300 m2
Residental, Moscow region
Location:Centre
Object area:11 000 m2
Heineken beer factory
Location:Centre
MARS factory
Location:Volga region
Sodium Hypochlorite Plant
Location:Centre
Object area:120 000 m2
Merсedes-Benz Car Dealership renovation
Location:Centre
Object area:10 000 m2
